Product Description

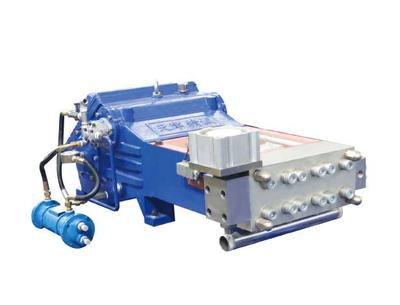

The 3201 series pumps are high-pressure plunger pumps manufactured using advanced imported technology. The power end features an export-type housing with forced lubrication. The high-speed shaft and crankshaft employ helical gear transmission, ensuring smooth and reliable operation, reduced friction coefficient, enhanced lubrication performance, low noise, minimal temperature rise in the power end, and suitability for prolonged continuous operation. The hydraulic end utilizes imported technology, making it ideal for hydrojet cleaning applications across various industries, including descaling and cleaning of c
ondensers, heat exchangers, evaporators, boilers, and other vessels in chemical plants, sugar refineries, power plants, as well as ship cleaning. Applications include powder metallurgy, high-pressure water jet-assisted rock breaking and coal loosening, laboratory benches, testing of various hoses, metal pipes, valves, and oilfield wellhead equipment, as well as other scenarios requiring high-pressure water jets. Capable of pumping clean water, emulsions, and other chemically active liquids, compatible with multiple power sources.
Product Parameters
rpmInput shaft speed: 1490 rpm | 3201 |
Piston reciprocating speed: 366 rpm | Pressure MPa |
Piston diameter | Theoretical displacement | 110kw | 132kw | 160kw | pyte |
mm | m3/h | L/min | - | - | - | - |
20 | 2.46 | 41 | - | 170 | 200 | P |
20 | 2.46 | 41 | - | 160 | - | Q |
20 | 2.46 | 41 | 140 | - | - | C2 |
22 | 3.02 | 50 | - | - | 170 | p |
22 | 3.02 | 50 | - | - | 160 | Q |
22 | 3.02 | 50 | 120 | 140 | - | C2 |
24 | 3.6 | 60 | - | 115 | 140 | C2 |
26 | 4.22 | 70 | - | - | 121 | C2 |
26 | 4.22 | 70 | 80 | 100 | - | D |
28 | 4.89 | 82 | 72 | 86 | 100 | D |
30 | 5.62 | 94 | 63 | 75 | 91 | D |
32 | 6.39 | 107 | 55 | 66 | 80 | D |
34 | 7.2 | 120 | 48 | 57 | 70 | D |
35 | 7.62 | 127 | 46 | 55 | 66 | D |
36 | 8.04 | 134 | 43 | 51 | 62 | D |
38 | 9 | 150 | 38 | 46 | 56 | D |
40 | 9.96 | 166 | 35 | 42 | 50 | D |
42 | 10.95 | 183 | - | 38 | 46 | D |
44 | 12 | 200 | - | 34 | 42 | E |
46 | 13.14 | 219 | - | 31 | 38 | E |
48 | 14.3 | 238 | - | 29 | 35 | E |
rpmInput shaft speed: 1490 rpm | 3201 |
Piston reciprocating speed: 366 rpm | Pressure MPa |
Piston diameter | Theoretical displacement | 110kw | 132kw | 160kw | pyte |
mm | m3/h | L/min |
18 | 1.74 | 29 | 200 | - | - | P |
