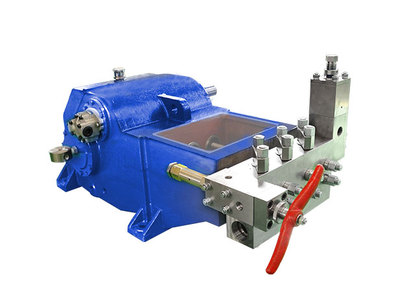

Product Description
This pump features a compact, space-saving design. Its drive end employs splash lubrication or forced lubrication, resulting in low temperature rise and suitability for extended continuous operation. It can pump liquids such as clean water and emulsions. It is widely used in various industries for water jet cleaning, descaling and cleaning of condensers, heat exchangers, evaporators, boilers, and other vessels in chemical plants, sugar refineries, power plants, desulfurization and denitrification processes, hydroentangled nonwoven fabrics, ship cleaning, water atomization powder production, steel mill descaling, liquid transfer, filter presses, and more.
Product Parameters
Input shaft speed: 1480 rpm | 3091 |
Piston reciprocating speed: 332 rpm | Pressure MPa |
Piston diameter | Theoretical displacement | 30kw | 37kw | 45kw | 55kw | 75kw | 90kw | 110kw | Type |
mm | m3/h | L/min |
32 | 4.81 | 80 | 20 | 24 | 30 | 36 | 50 | - | - | SF |
32 | 4.81 | 80 | - | - | - | - | - | 60 | 70 | T |
35 | 5.75 | 96 | 17 | 20 | 24 | 30 | 41 | 50 | - | SF |
35 | 5.75 | 96 | - | - | - | - | - | - | 60 | T |
40 | 7.51 | 125 | 13 | 15 | 19 | 23 | 31 | 38 | 46 | SF |
45 | 9.50 | 158 | 10 | 12 | 15 | 18 | 25 | 30 | 36 | SF |
48 | 10.8 | 180 | 9 | 11 | 13 | 16 | 22 | 26 | 32 | L |
50 | 11.75 | 196 | 8 | 10 | 12 | 15 | 20 | 24 | 29 | L |
52 | 12.72 | 212 | 7.5 | 9 | 11 | 13.5 | 18.5 | 22 | 27 | L |
55 | 14.22 | 237 | 6.5 | 8 | 10 | 12 | 16.5 | 20 | 24 | L |
58 | 15.78 | 263 | 6 | 7.5 | 9 | 11 | 15 | 18 | 22 | XL |
60 | 16.93 | 282 | 5.5 | 7 | 8.5 | 10 | 14 | 16.5 | 20 | XL |
62 | 18.06 | 301 | 5 | 6.5 | 8 | 9.5 | 13 | 15.5 | 19 | XL |
65 | 19.87 | 331 | 4.8 | 6 | 7 | 8.5 | 12 | 14 | 17 | XL |
68 | 21.72 | 362 | 4.5 | 5.5 | 6.5 | 8 | 11 | 13 | 16 | XL |
70 | 22.98 | 383 | 4 | 5 | 6 | 7.5 | 10 | 12 | 15 | XL |
