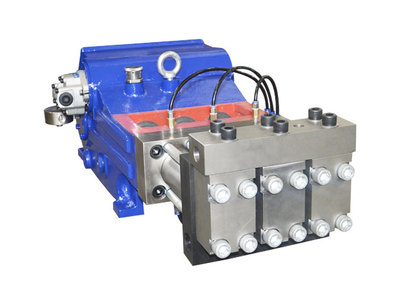

The JC3090MH2 series of high-pressure plunger pumps, manufactured using advanced technology, feature compact structure, small size, light weight, and high efficiency. The power end employs an export-grade housing with forced lubrication. The high-speed shaft and crankshaft utilize helical gear transmission, ensuring smooth and reliable operation, low friction coefficient, superior lubrication performance, minimal noise, and low temperature rise in the power end. This design is suitable for extended continuous operation. The hydraulic end incorporates imported German technology, offering rational design, ease of maintenance, and operational reliability. It is suitable for vario
us traffic marking line applications, including cleaning rubber lines on airport runways.
Input shaft speed: 1480 rpm | 3090 |
Piston reciprocating speed: 405 rpm | Pressure MPa |
| Piston diameter | Theoretical displacement | 30kw | 37kw | 45kw | 55kw | 75kw | 90kw | Type |
mm | m3/h | L/min |
14.3 | 1.11 | 18 | - | - | - | - | 220 | 280 | UH2 |
15.9 | 1.38 | 23 | - | - | - | - | - | 200 | UH |
20 | 2.16 | 36 | 45 | 50 | - | - | - | - | SF |
20 | 2.16 | 36 | - | - | 70 | - | - | - | T |
22 | 2.64 | 44 | 35 | 45 | 50 | - | - | - | SF |
22 | 2.64 | 44 | - | - | - | 70 | - | - | T |
24 | 3.12 | 52 | 30 | 37 | 45 | 50 | - | - | SF |
24 | 3.12 | 52 | - | - | - | - | 70 | - | T |
25 | 3.4 | 56 | 27.5 | 34 | 41 | 50 | - | - | SF |
26 | 3.66 | 61 | 25.6 | 31.5 | 38 | 50 | - | - | SF |
28 | 4.26 | 71 | 22 | 27 | 33 | 40 | 50 | - | SF |
28 | 4.26 | 71 | - | - | - | - | - | 70 | T |
30 | 4.89 | 81 | 19 | 24 | 29 | 35 | 48 | 50 | SF |
30 | 4.89 | 81 | - | - | - | - | - | 60 | T |
32 | 5.57 | 92 | 17 | 21 | 25 | 31 | 42 | 50 | SF |
35 | 6.66 | 111 | 14 | 17 | 21 | 26 | 35 | 42 | SF |
38 | 7.86 | 131 | 12 | 15 | 18 | 22 | 30 | 36 | SF |
40 | 8.70 | 145 | 11 | 13 | 16 | 20 | 27 | 32 | SF |
42 | 9.6 | 160 | 10 | 12 | 14 | 18 | 24.5 | 29 | SF |
43 | 10.06 | 168 | 9 | 11.5 | 14 | 17 | 23 | 28 | SF |
44 | 10.53 | 176 | 9 | 11 | 13 | 16 | 22 | 26 | SF |
45 | 11.02 | 184 | 8.5 | 10.5 | 12 | 15 | 21 | 25 | SF |
48 | 12.53 | 209 | 7.5 | 9 | 11 | 13 | 18 | 22 | L |
50 | 13.56 | 227 | 7 | 8.5 | 10 | 12 | 17 | 21 | L |
52 | 14.7 | 245 | 6.5 | 8 | 9.6 | 11.7 | 16 | 19 | L |
55 | 16.44 | 274 | 5.7 | 7 | 8.5 | 10.5 | 14.5 | 17 | L |
