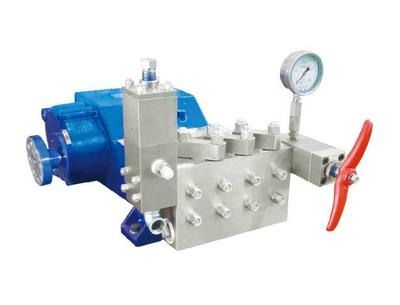

The 3020 high-pressure pump is compact in size, lightweight, and delivers a flow rate commonly used in high-pressure cleaning machines. It employs a splash lubrication system, making it suitable for various long-duration operations such as filter press cleaning, food factory applications, pipeline cleaning, workpiece cleaning, sand removal, rust removal, liquid transfer, and hydraulic transmission. This pump is capable of pumping not only clean water and emulsions but also other chemically active liquids.
Product Specifications
Input shaft speed: 1460 rpm | 3020 |
Piston reciprocating speed: 400 rpm | Pressure MPa |
Piston diameter | Theoretical displacement | 7.5kw | 11kw | 15kw | 18.5kw | 22kw |
mm | m3/h | L/min |
20 | 1.36 | 23 | 17 | 25 | 34 | - | - |
22 | 1.62 | 27 | 14 | 21 | 28 | 35 | - |
24 | 1.96 | 33 | 12 | 17 | 24 | 29 | 35 |
25 | 2.1 | 35 | 11 | 16 | 22 | 27 | 32 |
26 | 2.28 | 38 | 10 | 15 | 20 | 25 | 30 |
28 | 2.64 | 44 | 8.8 | 13 | 17 | 21 | 26 |
30 | 3.05 | 51 | 7.6 | 11 | 15 | 19 | 22 |
32 | 3.47 | 58 | 6.7 | 10 | 13 | 16 | 20 |
35 | 4.16 | 69 | 5.6 | 8.5 | 11 | 14 | 16 |
40 | 5.43 | 91 | 4.3 | 6.3 | 8.6 | 10.6 | 12.6 |
42 | 5.99 | 100 | 3.9 | 5.7 | 7.8 | 9.6 | 11.5 |
45 | 6.87 | 115 | 3.4 | 5 | 6.8 | 8.4 | 10 |
Input shaft speed: 1460 rpm | 3020 |
Piston reciprocating speed: 400 rpm | Pressure MPa |
Piston diameter | Theoretical displacement | 7.5kw | 11kw | 15kw | 18.5kw | 22kw |
mm | m3/h | L/min |
42 | 7.48 | 125 | 3 | 4.6 | 6.3 | 7.7 | 9 |
45 | 8.58 | 143 | 2.5 | 4 | 5.5 | 7 | 8 |
